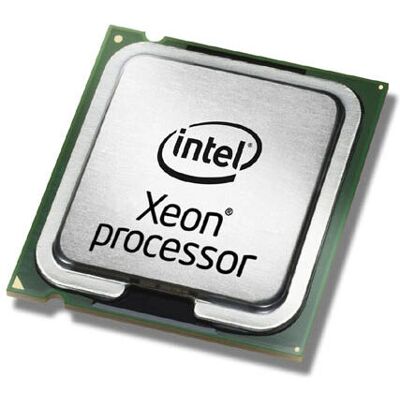

Intel Xeon E5-2680V4 Processor - 14-Core 2.4 GHz Server
- 14 cores •
- 2.4 GHz frequency •
- 35 MB cache •
- LGA 2011-v3 socket •
- More features
Offers updated on: 16/08/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Intel Xeon E5-2680V4 Processor, launched in Q1'16, a powerful solution designed to handle demanding server and workstation tasks. With its cutting-edge features and high performance, this 14-core processor is tailored for professionals who need reliability and speed.
Operating at a base frequency of 2.4 GHz and capable of boosting up to 3.3 GHz, this processor ensures that your applications run smoothly and efficiently. It boasts 28 threads, allowing for enhanced multitasking capabilities, making it ideal for running virtual machines or complex simulations.
The E5-2680V4 is built on a 14 nm lithography process, showcasing Intel's commitment to efficiency and performance. With a 35 MB Smart Cache, it minimizes latency for frequently accessed data, improving overall processing speed.
This processor supports quad-channel DDR4-SDRAM memory, with a maximum bandwidth of 76.8 GB/s and support for memory speeds up to 2400 MHz. You can configure your system with up to 1.54 TB of internal memory, making it suitable for memory-intensive tasks.
Equipped with Intel Hyper-Threading Technology and Intel Turbo Boost Technology 2.0, the E5-2680V4 adapts to workload demands, providing high performance when needed. Its 120 W TDP ensures that it remains energy-efficient without compromising on power.
With 40 PCI Express lanes and compatibility across multiple Intel server systems, this processor offers extensive connectivity options for your enterprise solutions. Enhance your server's capability with added storage or advanced graphics cards.
Utilize the Intel Trusted Execution Technology for enhanced security in virtual environments, ensuring your data remains protected from unauthorized access. If reliability is your priority, the E5-2680V4 comes with features like ECC memory support to prevent data corruption.
Ideal for businesses needing robust performance for cloud computing, data analytics, or virtualization, the Intel Xeon E5-2680V4 provides a scalable solution to meet your growing demands. Consider it for powerful corporate servers or high-performance workstations, and witness the difference in processing capabilities!
Features
Processor
- Processor manufacturer:Intel
- Processor model:E5-2680V4
- Processor base frequency:2.4 GHz
- Processor family:Intel® Xeon® E5 v4
- Processor cores:14
- Processor socket:LGA 2011-v3
- Component for:Server/workstation
- Processor lithography:14 nm
- Processor series:Intel Xeon E5-2600 v4
- Processor threads:28
- System bus rate:9.6 GT/s
- Processor operating modes:64-bit
- Processor boost frequency:3.3 GHz
- Processor cache:35 MB
- Processor cache type:Smart Cache
- Thermal Design Power (TDP):120 W
- Package type:Tray
- Cooler included:No
- VID Voltage Range:0 - 0 V
- Stepping:M0
- Bus type:QPI
- Number of QPI links:2
- Memory bandwidth supported by processor (max):76.8 GB/s
- Processor codename:Broadwell
- Processor code:SR2N7
- Processor ARK ID:91754
Memory
- Maximum internal memory supported by processor:1.53 TB
- Memory types supported by processor:DDR4-SDRAM
- Memory clock speeds supported by processor:1600,1866,2133,2400 MHz
- Memory channels:Quad-channel
- ECC:Yes
Graphics
- On-board graphics card:No
Features
- Execute Disable Bit:Yes
- Idle States:Yes
- Thermal Monitoring Technologies:Yes
- Market segment:Server
- Maximum number of PCI Express lanes:40
- PCI Express slots version:3.0
- Supported instruction sets:AVX 2.0
- Scalability:2S
- Physical Address Extension (PAE):Yes
- CPU configuration (max):2
- Embedded options available:Yes
- Physical Address Extension (PAE):46 bit
- PCI Express CEM revision:3.0
- Export Control Classification Number (ECCN):5A992C
- Commodity Classification Automated Tracking System (CCATS):G077159
Processor special features
- Intel® Hyper Threading Technology (Intel® HT Technology):Yes
- Intel® Identity Protection Technology (Intel® IPT):No
- Intel® Turbo Boost Technology:2.0
- Intel Flex Memory Access:No
- Intel® AES New Instructions (Intel® AES-NI):Yes
- Enhanced Intel SpeedStep Technology:Yes
- Intel Trusted Execution Technology:Yes
- Intel® Turbo Boost Technology 2.0 frequency:3.3 GHz
- Intel® Transactional Synchronization Extensions:Yes
- Intel Enhanced Halt State:Yes
- Intel VT-x with Extended Page Tables (EPT):Yes
- Intel Demand Based Switching:Yes
- Intel® Secure Key:Yes
- Intel TSX-NI:Yes
- Intel® OS Guard:Yes
- Intel 64:Yes
- Intel Identity Protection Technology version:0.00
- Intel Secure Key Technology version:1.00
- Intel Virtualization Technology (VT-x):Yes
- Intel Virtualization Technology for Directed I/O (VT-d):Yes
- Intel TSX-NI version:1.00
- Conflict-Free processor:Yes
- Intel® vPro™ Platform Eligibility:Yes
Operational conditions
- Tcase:86 °C
Technical details
- Bus bandwidth:9.6
- Bus type units:GT/s
- Launch date:Q1'16
- Processor cache:35840 KB
- Product type:Processor
- Status:Launched
- Processor brand name:Intel Xeon
- Supported memory types:DDR4-SDRAM
- Last change:63903513
- Product family:Intel Xeon Processor E5 v4 Family
- Bus speed:9.6 GT/s
- Servicing status:End of Servicing Updates
- End of servicing updates date:Thursday, June 30, 2022
Logistics data
- Harmonized System (HS) code:85423119
Weight & dimensions
- Processor package size:45mm x 52.5mm
Other features
- Compatibility:Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server System VRN2208WAF6 Intel Server System VRN2208WAF8 Intel Server System VRN2208WHY8 Intel Server System VRN2224THY6 Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR
- Maximum internal memory:1.5 TB
- Maximum internal memory:1572864 MB
