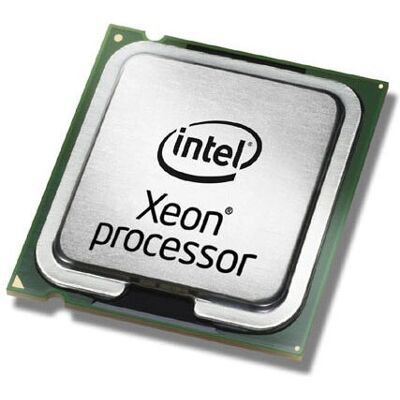

Intel Xeon E5-2643V3 Processor - Quad-Channel Server
- 3.4 GHz clock speed •
- 20 MB cache •
- LGA 2011-v3 socket •
- Quad-channel memory •
- More features
Offers updated on: 02/07/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Intel Xeon E5-2643V3 Processor - Quad-Channel Server launched in Q3'14, offers workstation- and server-grade performance in a reliable Haswell-based package.
This Intel Xeon E5-2643 v3 (20M Cache, 3.40 GHz) features six physical cores and twelve threads with a base frequency of 3.4 GHz and Intel Turbo Boost 2.0 up to 3.7 GHz, delivering responsive single-thread and multi-thread performance for demanding server workloads.
Built on a 22 nm process and using the LGA 2011-v3 socket, the processor supports quad-channel DDR4 memory at 1600–2133 MHz and a maximum of 768 GB of ECC memory, making it well suited to memory-intensive applications and virtualization tasks.
With a 20 MB Smart Cache, a 9.6 GT/s QPI bus (two QPI links), and support for up to 40 PCIe lanes (PCIe 3.0, x4/x8/x16 configurations), the E5-2643 v3 is designed for high-throughput IO, database operations, and I/O-heavy server roles.
Power and platform features include a 135 W TDP, support for Intel VT-x and VT-d virtualization technologies, Intel Hyper-Threading, AES-NI, Intel Trusted Execution, and advanced power management such as Enhanced Intel SpeedStep and Demand Based Switching.
Although supplied as a tray package without a cooler and now discontinued, this CPU remains valuable for 2-socket (2S) server configurations and workstation rebuilds where proven Haswell-class performance and broad ECC DRAM support are required.
Typical use cases include virtualization hosts, database and analytics servers, engineering workstations, and legacy platform refreshes that require strong single-thread throughput combined with reliable multi-core scalability.
Key selling points: high base clock (3.4 GHz), 6 cores / 12 threads, 20 MB Smart Cache, quad-channel DDR4 ECC support up to 768 GB, 40 PCIe lanes, and enterprise virtualization features.
- 6 cores / 12 threads, 3.4–3.7 GHz (Turbo)
- Quad-channel DDR4, up to 768 GB ECC
- 40 PCIe 3.0 lanes, 2‑socket scalability
- 20 MB Intel Smart Cache, 135 W TDP
- Intel VT-x/VT-d, AES‑NI, Hyper‑Threading
Features
Processor
- Processor manufacturer:Intel
- Processor model:E5-2643V3
- Processor base frequency:3.4 GHz
- Processor family:Intel Xeon E5 v3
- Processor cores:6
- Processor socket:LGA 2011-v3
- Component for:Server/workstation
- Processor lithography:22 nm
- Processor series:Intel Xeon E5-2600 v3
- Processor threads:12
- System bus rate:9.6 GT/s
- Processor operating modes:64-bit
- Processor boost frequency:3.7 GHz
- Processor cache:20 MB
- Processor cache type:Smart Cache
- L3 cache speed:3.4 GHz
- Thermal Design Power (TDP):135 W
- Package type:Tray
- Cooler included:No
- VID Voltage Range:0.65 - 1.3 V
- Stepping:R2
- Bus type:QPI
- Number of QPI links:2
- Memory bandwidth supported by processor (max):68 GB/s
- Processor codename:Haswell
- Processor code:SR204
- Processor ARK ID:81900
Memory
- Maximum internal memory supported by processor:768 GB
- Memory types supported by processor:DDR4-SDRAM
- Memory clock speeds supported by processor:1600,1866,2133 MHz
- Memory channels:Quad-channel
- ECC:Yes
Graphics
- On-board graphics card:No
Features
- Execute Disable Bit:Yes
- Idle States:Yes
- Thermal Monitoring Technologies:Yes
- Market segment:Server
- Maximum number of PCI Express lanes:40
- PCI Express slots version:3.0
- PCI Express configurations:x4, x8, x16
- Supported instruction sets:AVX 2.0
- Scalability:2S
- Physical Address Extension (PAE):Yes
- CPU configuration (max):2
- Embedded options available:No
- Physical Address Extension (PAE):46 bit
- PCI Express CEM revision:3.0
- Export Control Classification Number (ECCN):5A992C
- Commodity Classification Automated Tracking System (CCATS):G077159
Processor special features
- Intel® Hyper Threading Technology (Intel® HT Technology):Yes
- Intel® Identity Protection Technology (Intel® IPT):No
- Intel® Turbo Boost Technology:2.0
- Intel Flex Memory Access:No
- Intel® Smart Cache:Yes
- Intel® AES New Instructions (Intel® AES-NI):Yes
- Enhanced Intel SpeedStep Technology:Yes
- Intel Trusted Execution Technology:Yes
- Intel® Turbo Boost Technology 2.0 frequency:3.7 GHz
- Intel® Transactional Synchronization Extensions:No
- Intel Enhanced Halt State:Yes
- Intel VT-x with Extended Page Tables (EPT):Yes
- Intel Demand Based Switching:Yes
- Intel® Secure Key:Yes
- Intel TSX-NI:No
- Intel® OS Guard:Yes
- Intel 64:Yes
- Intel Identity Protection Technology version:0.00
- Intel Secure Key Technology version:1.00
- Intel Virtualization Technology (VT-x):Yes
- Intel Virtualization Technology for Directed I/O (VT-d):Yes
- Intel TSX-NI version:0.00
- Conflict-Free processor:No
- Intel® vPro™ Platform Eligibility:Yes
Operational conditions
- Tcase:77.3 °C
Technical details
- Born on date:Q3'14
- Bus bandwidth:9.6
- Bus type units:GT/s
- Launch date:Q3'14
- Processor cache:20480 KB
- Processor core voltage:0.65–1.30
- Product name:Intel Xeon E5-2643 v3 (20M Cache, 3.40 GHz)
- Product type:Processor
- Status:Discontinued
- Maximum memory:768 GB
- Processor brand name:Intel Xeon v2
- Supported memory types:DDR4-SDRAM
- Last change:63903513
- Product family:Intel Xeon Processor E5 v3 Family
- Bus speed:9.6 GT/s
Logistics data
- Harmonized System (HS) code:8542310001
Weight & dimensions
- Processor package size:52.5mm x 45mm
Other features
- Intel® Virtualization Technology (Intel® VT):VT-d, VT-x
- Maximum internal memory:768 GB
- Maximum internal memory:786432 MB
- Cache memory:20 MB
