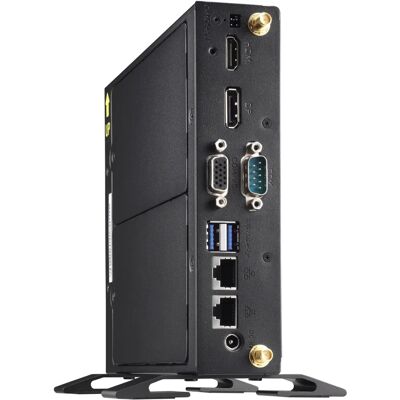

Shuttle Black XPC DS20U Mini PC - Fanless, 4K, Compact
- Fanless design •
- Supports UHD/4K displays •
- Passive cooling for 24/7 operation •
- Compact 1.3L chassis •
- More features
Offers updated on: 09/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Shuttle Black XPC DS20U Mini PC, a fanless, compact powerhouse designed to deliver top-tier performance while maintaining a sleek design. Released to cater to the needs of modern users, this mini PC is perfect for both home and office applications.
This versatile machine is equipped with an Intel® Celeron® 5205U processor, featuring dual cores and threads, ensuring smooth multitasking and efficient performance at a frequency of 1.9 GHz. With a Thermal Design Power (TDP) of just 15 W, it operates quietly and efficiently, making it an ideal choice for environments where silence is key.
The Shuttle Black XPC DS20U supports up to 64 GB of DDR4-SDRAM, catering to memory-intensive applications. Its dual-channel memory architecture ensures maximum throughput, enabling tasks like video editing or gaming to run seamlessly. Plus, with dual SO-DIMM slots, upgrading memory is a breeze!
Storage capabilities are equally impressive, supporting both HDD and SSD drives through PCI Express and Serial ATA III interfaces. You can expand your storage needs effortlessly with two slots available for drives, accommodating sizes of 2.5 inches and M.2.
The built-in Intel® UHD Graphics provides stunning visuals on-screen, making it perfect for casual gaming or streaming in 4K resolution. Connectivity is straightforward, with four USB 3.2 Gen 1 ports, four USB 2.0 ports, and both HDMI and DisplayPort outputs for dual-screen setups.
The sleek black chassis of just 1.3L in size allows for VESA mounting, ensuring it can fit onto any workspace without taking up unnecessary room. Wired networking via Ethernet LAN with two RJ-45 ports offers reliable, high-speed internet access without the mess of additional cables.
Designed with user convenience in mind, the Shuttle Mini PC includes features such as an integrated card reader compatible with SD, SDHC, and SDXC memory cards. It comes with an external AC adapter and quick start guide, making setup straightforward and hassle-free.
In low humidity and temperature conditions, this Mini PC can operate comfortably from 0 to 40 °C and with 10 to 90% relative humidity. All these features come packed into a lightweight and portable model weighing just 1.5 kg.
In summary, whether you're looking for a reliable PC for day-to-day tasks, a tool for creative projects, or a compact media center, the Shuttle Black XPC DS20U Mini PC is an excellent choice that balances power, efficiency, and design.
- Powerful Intel® Celeron® 5205U processor
- Supports up to 64 GB of DDR4 memory
- Dual storage configurability for HDDs and SSDs
- Passive cooling for silent operation
- Multi-display support with HDMI and DisplayPort
- Secure design with Trusted Platform Module (TPM)
Features
Processor
- Processor manufacturer:Intel
- Processor family:Intel® Celeron®
- Processor model:5205U
- Processor cores:2
- Processor threads:2
- Processor frequency:1.9 GHz
- Built-in processor:Yes
- Processor lithography:14 nm
- Processor cache:2 MB
- Thermal Design Power (TDP):15 W
- CPU configuration (max):1
Memory
- Memory slots type:SO-DIMM
- Number of memory slots:2
- Maximum internal memory:64 GB
- Supported memory clock speeds:2400 MHz
- Supported memory types:DDR4-SDRAM
- Memory channels:Dual-channel
- Memory voltage:1.2 V
- Non-ECC:Yes
Storage
- Supported storage drive types:HDD & SSD
- Storage drive sizes supported:2.5,M.2
- Storage drive interface:PCI Express, Serial ATA III
- Number of storage drives supported:2
- Card reader integrated:Yes
- Compatible memory cards:SD, SDHC, SDXC
Graphics
- On-board graphics card:Yes
- Graphics card family:Intel
- On-board graphics card model:Intel® UHD Graphics
Audio
- Built-in speaker(s):No
Network
- Ethernet LAN:Yes
- Wi-Fi:No
- LAN controller:Intel® I211, Intel® I219-LM
Ports & interfaces
- USB 2.0 ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- HDMI ports quantity:1
- HDMI version:2.0a
- VGA (D-Sub) ports quantity:1
- DisplayPorts quantity:1
- DisplayPort version:1.2
- Microphone in:Yes
- Headphone outputs:1
- Ethernet LAN (RJ-45) ports:2
- Serial ports quantity:1
- DC-in jack:Yes
Expansion slots
- Number of M.2 (M) slots:1
Design
- Chassis type:1.3L sized PC
- Product colour:Black
- Cooling type:Passive
- On/off switch:Yes
- LED indicators:HDD, Power
- Cable lock slot:Yes
- Cable lock slot type:Kensington
- VESA mounting:Yes
- Product type:Mini PC barebone
Performance
- Motherboard chipset:Intel SoC
- Number of processors supported:1
- BIOS type:UEFI AMI
- Trusted Platform Module (TPM):Yes
- Trusted Platform Module (TPM) version:2.0
Processor special features
- Embedded options available:No
- Intel Virtualization Technology for Directed I/O (VT-d):Yes
- Intel VT-x with Extended Page Tables (EPT):Yes
- Intel 64:Yes
- Idle States:Yes
- Enhanced Intel SpeedStep Technology:Yes
- Intel Flex Memory Access:Yes
- Intel Trusted Execution Technology:No
- Execute Disable Bit:Yes
- Intel TSX-NI:No
- Intel Clear Video Technology:Yes
- Intel Virtualization Technology (VT-x):Yes
Logistics data
- Harmonized System (HS) code:84713000
Software
- Windows operating systems supported:Windows 10, Windows 11
- Linux operating systems supported:Yes
- Operating system installed:No
Power
- Power supply type:External AC adapter
- Power supply:65 W
- Number of power supply units:1
- AC input voltage:100 - 240 V
- AC input frequency:50 - 60 Hz
- AC adapter output voltage:19 V
- AC adapter output current:3.42 A
Operational conditions
- Operating temperature (T-T):0 - 40 °C
- Operating relative humidity (H-H):10 - 90%
Weight & dimensions
- Width:165 mm
- Depth:200 mm
- Height:39.5 mm
- Weight:1.5 kg
- Package weight:2.2 kg
Packaging content
- Power cord included:Yes
- AC adapter included:Yes
- Quick start guide:Yes
- Drivers included:Yes
Other features
- Country of origin:China
