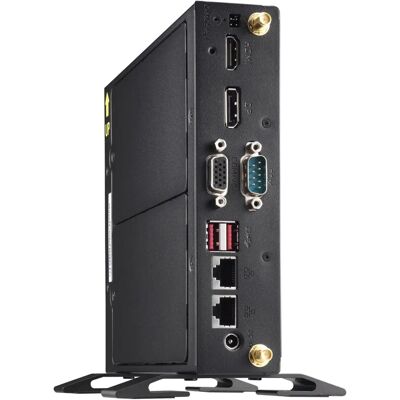

Shuttle XPC slim DS10U3 - Black - PC/workstation barebone
- Intel Core i3-8145U •
- 2 x 260-pin DDR4 RAM support •
- Supports 1 x 2.5" SATA SSD/HDD •
- Intel UHD Graphics 620 •
- More features
Offers updated on: 09/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Discover the power of the Shuttle XPC slim DS10U3, the ultimate PC/workstation barebone designed for efficiency and performance. With its sleek black design and compact form factor, this device is perfect for both home and office use, blending seamlessly into any environment.
Powered by an Intel® Core™ i3 8th generation processor (i3-8145U), this workstation supports 2 cores and 4 threads, boosting up to 3.9 GHz, making it ideal for multitasking and running demanding applications smoothly.
The Shuttle XPC slim is built for flexibility with:
- Memory Slots: 2 SO-DIMM slots supporting up to 32 GB of DDR4 SDRAM.
- Storage Options: Compatible with HDD & SSD drives (2.5" size).
- Graphics: Integrated Intel® UHD Graphics 620 for smooth media playback and everyday graphics needs.
Stay connected with extensive connectivity options including Wi-Fi (802.11ac), Ethernet LAN, and multiple USB ports:
- USB Ports: 4 USB 2.0 and 4 USB 3.2 Gen 2 Type-A for high-speed data transfer.
- Display Connections: HDMI 2.0a, VGA, and DisplayPort 1.2 for compatibility with various monitors.
Ideal for home office setups, the Shuttle XPC slim supports both Windows 10 and Linux operating systems, giving you the flexibility to work in your preferred environment. With its passive cooling design, this workstation operates quietly, allowing you to focus on your tasks without distractions.
The compact 1.3L chassis not only saves space but also comes VESA mount compatible, making it easy to attach to a monitor or wall for a clutter-free workspace.
Safety is paramount, with certifications including FCC, CE, and ENERGY STAR compliance, ensuring energy efficiency and reliability. The package includes a quick start guide, drivers, and an external power supply for easy setup.
In summary, the Shuttle XPC slim DS10U3 is a versatile, compact workstation designed to meet your computing needs while offering excellent performance and connectivity options. Whether for professional work or home entertainment, this system is geared to provide a seamless experience.
Features
Processor
- Processor manufacturer:Intel
- Processor family:Intel® Core™ i3
- Processor generation:8th gen Intel® Core™ i3
- Processor model:i3-8145U
- Processor cores:2
- Processor threads:4
- Processor boost frequency:3.9 GHz
- Processor frequency:2.1 GHz
- Built-in processor:Yes
- Processor lithography:14 nm
- Thermal Design Power (TDP):15 W
- Processor codename:Whiskey Lake
- CPU configuration (max):1
Memory
- Memory slots type:SO-DIMM
- Number of memory slots:2
- Maximum internal memory:32 GB
- Supported memory clock speeds:2133,2400 MHz
- Supported memory types:DDR4-SDRAM
- Memory channels:Dual-channel
- Memory voltage:1.2 V
- Non-ECC:Yes
Storage
- Supported storage drive types:HDD & SSD
- Storage drive sizes supported:2.5"
- Storage drive interface:Serial ATA
- Card reader integrated:Yes
- Compatible memory cards:SD, SDHC, SDXC
Graphics
- On-board graphics card:Yes
- Graphics card family:Intel
- On-board graphics card model:Intel® UHD Graphics 620
Network
- Wi-Fi standards:802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Ethernet LAN:Yes
- Wi-Fi:Yes
- LAN controller:Intel® I211, Intel I219LM
- Bluetooth:Yes
- Bluetooth version:4.0
Ports & interfaces
- USB 2.0 ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:4
- HDMI ports quantity:1
- HDMI version:2.0a
- VGA (D-Sub) ports quantity:1
- DisplayPorts quantity:1
- DisplayPort version:1.2
- Microphone in:Yes
- Headphone outputs:1
- Ethernet LAN (RJ-45) ports:2
- Serial ports quantity:1
- DC-in jack:Yes
Expansion slots
- PCI Express slots version:3.0
- PCI Express configurations:1x2+2x1, 1x4, 2x2, 4x1
Design
- Chassis type:1.3L sized PC
- Product colour:Black
- Cooling type:Passive
- LED indicators:HDD, Power
- Cable lock slot:Yes
- Cable lock slot type:Kensington
- VESA mounting:Yes
- Safety:ETL, CB, BSMI
Performance
- Motherboard chipset:Intel SoC
- Processor socket:BGA 1528
- Number of processors supported:1
- BIOS type:UEFI AMI
- Audio output channels:2.0 channels
- Audio chip:Realtek ALC662
Processor special features
- Embedded options available:No
- Intel® AES New Instructions (Intel® AES-NI):Yes
- Intel® Quick Sync Video Technology:Yes
- Intel® Clear Video HD Technology (Intel® CVT HD):Yes
- Intel® Turbo Boost Technology:2.0
- Intel® Hyper Threading Technology (Intel® HT Technology):Yes
- Intel Virtualization Technology for Directed I/O (VT-d):Yes
- Intel VT-x with Extended Page Tables (EPT):Yes
- Intel 64:Yes
- Intel® My WiFi Technology (Intel® MWT):Yes
- Idle States:Yes
- Enhanced Intel SpeedStep Technology:Yes
- Thermal Monitoring Technologies:Yes
- Intel Flex Memory Access:Yes
- Intel® Identity Protection Technology (Intel® IPT):Yes
- Intel Trusted Execution Technology:No
- Execute Disable Bit:Yes
- Intel TSX-NI:No
- Intel® Secure Key:Yes
- Intel® Smart Response Technology:Yes
- Intel® OS Guard:Yes
- Intel Clear Video Technology:Yes
- Intel Virtualization Technology (VT-x):Yes
Logistics data
- Harmonized System (HS) code:84713000
Certificates
- Certification:FCC, CE, BSMI, C-Tick, ErP
Software
- Windows operating systems supported:Windows 10
- Linux operating systems supported:Yes
- Operating system installed:No
Sustainability
- Sustainability certificates:ENERGY STAR
Power
- Power supply type:External AC adapter
- Power supply:65 W
- Number of power supply units:1
- AC input voltage:100 - 240 V
- AC input frequency:50 - 60 Hz
- AC adapter output voltage:19 V
- AC adapter output current:3.42 A
Operational conditions
- Operating temperature (T-T):0 - 40 °C
- Operating relative humidity (H-H):10 - 90%
Weight & dimensions
- Width:165 mm
- Depth:200 mm
- Height:39.5 mm
- Weight:1.5 kg
- Package weight:2.2 kg
Packaging content
- Power cord included:Yes
- AC adapter included:Yes
- Quick start guide:Yes
- Drivers included:Yes
Other features
- Processor ARK ID:149090
