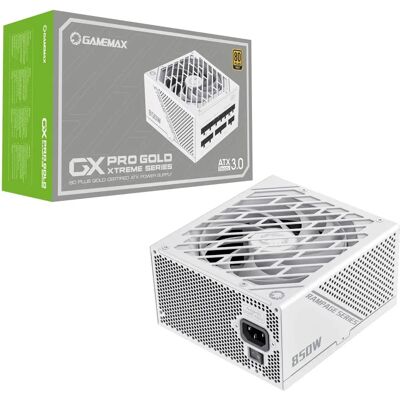

GameMax GX-850 Pro 80 Plus Gold Power Supply - White

Power

• Total power:850 W
• AC input voltage:100 - 240 V
• AC input frequency:50/60 Hz
• Input current:10 - 5 A
• Maximum input current (@110V):10 A
• Maximum input current (@220V):5 A
• Power factor:0.99
• Power Factor Correction (PFC) type:Active
• Combined power (+3.3V):100 W
• Combined power (+12V):840 W
• Combined power (+5V):100 W
• Combined power (-12V):3.6 W
• Combined power (+5Vsb):12.5 W
• Max output current (+3.3V):20 A
• Max output current (+12V):70 A
• Max output current (+5V):20 A
• Max output current (-12V):0.3 A
• Max output current (+5Vsb):2.5 A
• Hold time:10 ms
• Efficiency:87%
• Power protection features:Over current, Over power, Surge & inrush protection (SIP), Under power

Ports & interfaces

• Motherboard power connector:20+4 pin ATX
• Motherboard power cable length:65 cm
• Number of SATA power connectors:6
• Number of PATA power connectors:3
• SATA power cable length:500,650,800 mm
• PCI Express power connectors (6+2 pin):4
• CPU power connector (4+4 pin):Yes
• CPU power cable length:15 cm
• Cabling type:Fully-Modular

Performance

• 80 PLUS certification:80 PLUS Gold
• Purpose:PC
• Power supply unit (PSU) form factor:ATX
• ATX version:3.1
• Noise level:25 dB
• Mean time between failures (MTBF):100000 h

Design

• Product colour:White
• Cooling type:Active
• Fan diameter:13.5 cm
• Number of fans:1 fan(s)
• On/off switch:Yes
