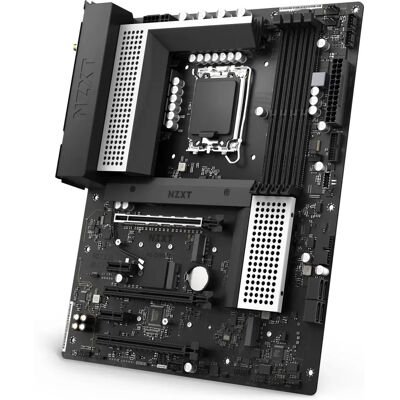

NZXT N5 Z690 Motherboard - Support DDR4, Wi-Fi 6E, RGB, 128GB RAM
- Supports latest Intel LGA 1700 socket processors •
- Compatible with DDR4 RAM •
- Wi-Fi 6E connectivity •
- RGB digital lighting control via NZXT CAM •
- More features
Offers updated on: 24/08/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
NZXT N5 Z690 Motherboard - Support DDR4, Wi-Fi 6E, RGB, 128GB RAM brings modern connectivity and high performance to builders who prefer DDR4 platforms.
The NZXT N5 Z690 is built for Intel processors using the LGA 1700 socket and supports the full range of Intel® Core™ i3, i5, i7 and i9 CPUs, with Intel Turbo Boost Technology 3.0 for added single- and multi-threaded responsiveness. Its Intel Z690 chipset delivers platform features expected from a contemporary ATX motherboard.
Memory support is centered on DDR4-SDRAM across four DIMM slots in dual-channel configuration, non-ECC and unbuffered, with official clock support from 2133 up to 3200 MHz and a maximum capacity of 128 GB, making it suitable for demanding productivity and content-creation workflows.
Storage options are versatile, with two M.2 slots supporting NVMe and PCIe 4.0 devices alongside four SATA III connectors for HDDs and SSDs. RAID 0, 1, 5 and 10 are supported for those who need redundancy or performance-oriented arrays.
Connectivity is comprehensive: a 2.5 Gigabit Ethernet port driven by the Realtek RTL8125-BG, Intel Wi‑Fi 6E AX210 with external antenna jacks, Bluetooth 5.2, multiple USB ports including USB 3.2 Gen2 Type-A and Type-C, and an HDMI 2.0 output. Expansion is generous with three PCIe x16 slots and two PCIe x1 slots, plus RGB header and extensive fan and power connectors for custom cooling and robust power delivery.
Audio uses the Realtek ALC897 codec with 8-channel output, and the board is compatible with Windows 10 x64 and Windows 11 x64. The ATX form factor and a weight around 1.1 kg make it straightforward to fit into most mid-to-full tower cases.
Typical use cases include high-refresh gaming builds using DDR4 memory, streaming and content creation rigs leveraging CPU performance and fast NVMe storage, and workstation systems needing multiple expansion slots and robust networking via Wi‑Fi 6E and 2.5GbE.
- Socket: LGA 1700 for Intel® Core™ processors
- Memory: 4x DIMM DDR4 up to 128 GB, 3200 MHz
- Networking: Intel Wi‑Fi 6E AX210 + 2.5 Gigabit Ethernet
- Storage: 2x M.2 (NVMe, PCIe 4.0) + 4x SATA III, RAID 0/1/5/10
- Expansion: 3x PCIe x16, RGB header, multiple fan connectors
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1700
- Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors:1
- Supported processor sockets:LGA 1700
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2800,2933,3200 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, NVMe, PCI Express 4.0, SATA III
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:2-Way CrossFireX
- Maximum resolution:4096 x 2160 pixels
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- Number of EATX power connectors:1
- Power fan connector:Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:5
- Peripheral (Molex) power connectors (4-pin):1
- EPS power connector (8-pin):Yes
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.0
- Microphone in:Yes
- WiFi-AP antenna jack:2
- USB connector type:USB Type-A, USB Type-C
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- LAN controller:Realtek RTL8125-BG
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- WLAN controller model:Intel Wi-Fi 6E AX210
- Bluetooth:Yes
- Bluetooth version:5.2
Features
- Motherboard chipset:Intel Z690
- Audio chip:Realtek ALC897
- Audio output channels:8 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots:2
- PCI Express x16 slots:3
- Number of M.2 (M) slots:2
Processor special features
- Intel® Turbo Boost Technology:3.0
Logistics data
- Harmonized System (HS) code:84733020
Weight & dimensions
- Height:101 mm
Packaging content
- Cables included:SATA
Other features
- Weight:1.1 kg
