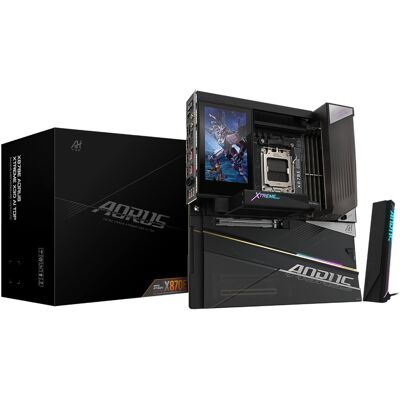

GIGABYTE X870E AORUS XTREME X3D AI TOP - Motherboard - AMD X870E - DDR5, PCIe 3x, LAN 2x 10 GbE, HDMI, RGB, ATX
- Supports AMD Ryzen 9000 series •
- Extended ATX form factor •
- Up to 256 GB DDR5 RAM •
- 3 PCIe x16 slots •
- More features
Offers updated on: 11/08/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
GIGABYTE X870E AORUS XTREME X3D AI TOP combines flagship performance and advanced connectivity on the AMD X870E platform, designed for high-end builds and released with modern AM5 support for Ryzen 7000/8000/9000 series processors.
This Extended ATX motherboard supports Socket AM5 processors from AMD and is engineered for DDR5 memory with four DIMM slots, dual-channel operation and an impressive maximum memory speed of up to 9000 MHz, supporting up to 256 GB (64 GB per slot) of unbuffered, non-ECC memory.
Storage and expansion are generous with five M.2 slots (various sizes including 2580 and 22110), two SATA III ports and support for up to seven drives in total. PCIe expansion includes two PCIe 5.0 x16 slots and one PCIe 4.x x16 slot, while RAID 0/1/5/10 is supported for advanced storage configurations.
Connectivity is a standout: dual 10 GbE LAN ports (Realtek RTL8127), Wi‑Fi 7 (MediaTek MT7927) with included antennas, Bluetooth 5.4, USB4 Gen 2x2 and numerous USB 3.2 Gen2 Type-A and Type-C ports. Video outputs include HDMI 2.1 and DisplayPort 1.4, supporting up to 4096x2160 and HDCP 2.3 for modern displays.
Cooling and power delivery are built for demanding systems with two 8‑pin EPS connectors, multiple CPU/chassis fan headers, three dedicated water pump connectors and onboard monitoring for fans, temperatures, voltages and water cooling. Passive cooling design and extensive BIOS (UEFI AMI with 512 Mbit) allow fine-tuning and stable operation.
Audio is addressed with premium ESS codecs (1x ES9280AC + 2x ES9080) for 7.1 output channels and digital optical S/PDIF out. The board ships in a robust package with included antenna, screws, CR2032 battery and Norton Internet Security OEM software, and carries a three-year warranty.
Typical use cases include overclocked gaming rigs using Ryzen X3D CPUs, content creation workstations needing fast NVMe storage and dual 10 GbE networking for small server or prosumer tasks. The X870E AORUS XTREME X3D AI TOP is aimed at enthusiasts and professionals who demand maximum connectivity, storage flexibility and high-end audio/ networking features.
- Socket AM5 for Ryzen 7000/8000/9000 Series
- DDR5 up to 9000 MHz, 4 DIMM, 256 GB max
- Dual 10 GbE, Wi‑Fi 7, USB4 Gen 2x2 and 5x M.2 slots
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
- Supported memory clock speed (max):9000 MHz
- Maximum internal memory:256 GB
- Unbuffered memory:Yes
- Maximum internal memory per slot:64 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:2
- Number of storage drives supported:7
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- Parallel processing technology support:Not supported
- Maximum resolution:4096 x 2160 pixels
- HDCP:Yes
- HDCP version:2.3
- DirectX version:12.0
Internal I/O
- USB 2.0 connectors:1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- USB 3.2 Gen 2x2 connectors:1
- Number of SATA III connectors:2
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:2
- Number of chassis fan connectors:3
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):2
- Number of water pump connectors:3
- Number of temperature sensor headers:2
- RGB LED pin header:Yes
- Number of RGB LED pin headers:1
Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:8
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- USB 3.2 Gen 2x2 Type-C ports quantity:1
- USB4 Gen 2x2 ports quantity:2
- Ethernet LAN (RJ-45) ports:2
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPort version:1.4
- Line-in:Yes
- Microphone in:Yes
- S/PDIF out port:Yes
- Digital audio optical out:1
- WiFi-AP antenna jack:2
Network
- Ethernet LAN:Yes
- Ethernet interface type:10 Gigabit Ethernet
- LAN controller:Realtek RTL8127
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 7 (802.11be)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model:MediaTek MT7927
- Bluetooth:Yes
- Bluetooth version:5.4
Features
- Motherboard chipset:AMD X870E
- Audio chip:1 ESS ES9280AC + 2 ESS ES9080
- Audio output channels:7.1 channels
- Product colour:Black
- PC health monitoring:Fan, Temperature, Voltage, Water cooling
- Component for:PC
- Motherboard form factor:Extended ATX
- Motherboard chipset family:AMD
- Cooling type:Passive
- Power source type:ATX
- Windows operating systems supported:Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 4.x) slots:1
- PCI Express x16 (Gen 5.x) slots:2
- Number of M.2 (M) slots:5
- 1st M.2 largest key size:2580
- 1st M.2 highest PCI Express generation:5.0
- 2nd M.2 largest key size:22110
- 2nd M.2 highest PCI Express generation:5.0
- 3rd M.2 largest key size:22110
- 3rd M.2 highest PCI Express generation:4.0
- 4th M.2 largest key size:22110
- 4th M.2 highest PCI Express generation:4.0
- 5th M.2 largest key size:2280
- 5th M.2 highest PCI Express generation:4.0
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:512 Mbit
- ACPI version:5.0
- Clear CMOS button:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:Taiwan
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery capacity:220 mAh
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:387 mm
- Package depth:387 mm
- Package height:167 mm
- Package weight:11.2 kg
Weight & dimensions
- Width:305 mm
- Depth:285 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
- Antenna included:Yes
- Screws included:Yes
- Bundled software:Norton® Internet Security (OEM version)
Other features
- Weight:8.02 kg
Technical details
- Warranty period:3 year(s)
