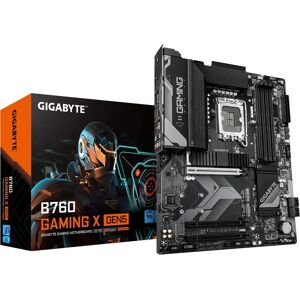

GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen Intel Core, 8+1+1 VRM, DDR5 5600 MHz, M.2 PCIe 4.0, LAN 2.5 GbE, USB 3.2 Gen 2

Processor

• Processor manufacturer:Intel
• Processor socket:LGA 1700
• Compatible processor series:Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
• Supported processor sockets:LGA 1700

Memory

• Supported memory types:DDR5-SDRAM
• Number of memory slots:4
• Memory slots type:DIMM
• Memory channels:Dual-channel
• ECC сompatibility:ECC & Non-ECC
• Supported memory clock speeds:4400,4800,5200,5600 MHz
• Supported memory clock speed (max):5600 MHz
• Maximum internal memory:256 GB
• Unbuffered memory:Yes
• Maximum internal memory per slot:64 GB

Storage controllers

• Supported storage drive types:HDD & SSD
• Supported storage drive interfaces:M.2, PCI Express 4.0, SATA III
• Number of HDDs supported:4
• Number of storage drives supported:7
• RAID support:Yes
• RAID levels:0, 1, 5, 10

Graphics

• Parallel processing technology support:Not supported
• Maximum resolution:4096 x 2304 pixels
• HDCP:Yes
• DirectX version:12.0

Internal I/O

• USB 2.0 connectors:2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
• Number of SATA III connectors:4
• S/PDIF out connector:Yes
• Front panel audio connector:Yes
• Front panel connector:Yes
• ATX Power connector (24-pin):Yes
• CPU fan connector:Yes
• Number of CPU fan connectors:2
• Number of chassis fan connectors:4
• EPS power connector (8-pin):Yes
• Number of EPS power connectors (8-pin):1
• TPM connector:Yes
• Serial port headers:1
• 12V power connector:Yes
• Number of water pump connectors:2
• RGB LED pin header:Yes
• Number of RGB LED pin headers:4

Rear panel I/O ports

• USB 2.0 ports quantity:5
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
• Ethernet LAN (RJ-45) ports:1
• HDMI ports quantity:1
• HDMI version:2.1
• DisplayPorts quantity:1
• DisplayPort version:1.2
• Headphone outputs:1
• Line-in:Yes
• Microphone in:Yes

Network

• Ethernet LAN:Yes
• Ethernet interface type:2.5 Gigabit Ethernet
• LAN controller:Realtek RTL8125
• Wi-Fi:No

Features

• Motherboard chipset:Intel B760
• Audio chip:Realtek ALC897
• Audio output channels:7.1 channels
• Product colour:Dark brown
• PC health monitoring:Fan, Temperature, Voltage, Water cooling
• Component for:PC
• Motherboard form factor:ATX
• Motherboard chipset family:Intel
• Cooling type:Passive
• Power source type:ATX
• Windows operating systems supported:Windows 10 x64, Windows 11 x64
