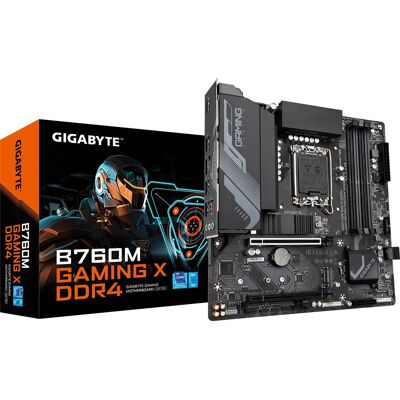

Gigabyte B760M GAMING X DDR4 - Micro ATX Motherboard

Gigabyte B760M GAMING X DDR4 - Micro ATX Motherboard delivers a balanced blend of performance and expandability for Intel LGA 1700 builds, backed by a 3-year warranty.

This Micro ATX motherboard supports Intel® processors for the LGA 1700 socket, including Intel® Celeron®, Pentium® Gold and the full range of Core™ i3/i5/i7/i9 CPUs. Its Intel B760 Express chipset provides modern platform features while remaining focused on stability and compatibility.

Memory support is generous and versatile: four DIMM slots enable up to 128 GB of DDR4-SDRAM in dual-channel mode, with supported clock rates up to an impressive 5333 MHz (OC). Both standard unbuffered non‑ECC modules and higher-frequency kits are supported, making this board suitable for gaming, content creation and multitasking rigs.

Storage and RAID options are extensive with two M.2 slots and four SATA III connectors, supporting up to six drives in total and RAID levels 0, 1, 5 and 10 for data protection or performance arrays. You can combine NVMe M.2 SSDs and SATA HDDs/SSDs to tailor capacity and speed to your needs.

Connectivity includes a robust rear I/O with USB 2.0, USB 3.2 Gen1 and Gen2 ports, a 2.5 Gigabit Ethernet port, HDMI 2.0 and DisplayPort outputs (maximum resolution 4096 x 2304), plus 7.1-channel audio with S/PDIF out. Internal headers cover additional USB, front panel audio, RGB LED, TPM and multiple fan connectors for comprehensive system integration.

The board also features one PCIe x16 Gen4 slot and one PCIe x16 Gen3 slot for discrete graphics or expansion cards, UEFI AMI BIOS with 256 Mbit memory and advanced system monitoring for fan, temperature, voltage and even water cooling. Thunderbolt headers and serial port headers increase compatibility with niche peripherals.

Ideal use cases include compact gaming systems, mid-range workstations, and upgrade projects where LGA 1700 CPU support and DDR4 memory reuse are priorities. The micro ATX form factor fits many small cases while leaving room for future expansion.

• Socket: LGA 1700 — compatible with Intel Core i3–i9, Pentium Gold, Celeron
• Memory: 4× DIMM, DDR4 up to 128 GB, up to 5333 MHz (OC)
• Storage & RAID: 2× M.2, 4× SATA III, RAID 0/1/5/10
• Networking & I/O: 2.5 GbE, USB 3.2 Gen2, HDMI 2.0, DP
• Form factor & warranty: micro ATX, 3-year warranty
