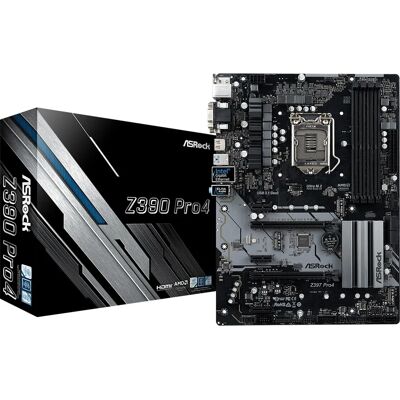

ASRock - Z390 Pro4 - ATX - LGA1151 - motherboard
- LGA1151 socket •
- ATX form factor •
- Intel Z390 chipset •
- ASRock Z390 Pro4 •
- More features
Offers updated on: 30/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
ASRock Z390 Pro4 ATX LGA1151 motherboard delivers a balanced platform for gaming, content creation and everyday computing with Intel 8th/9th Gen support and the robust Z390 chipset.
The Z390 Pro4 is built for Intel processors using the LGA1151 (Socket H4) and is compatible with Intel® Core™ i3, i5, i7 and i9 series CPUs, giving you a wide choice of performance levels depending on your needs.
Memory support is flexible and fast: four DIMM slots accept up to 64 GB of DDR4 non‑ECC RAM with support for speeds from 2133 MHz up to 4300 MHz (OC), and Intel® XMP is supported for simple overclocking profiles.
Expansion and storage options are plentiful thanks to two PCIe x16 (Gen3) slots, three PCIe x1 slots, two M.2 sockets and six SATA III ports, making the board suitable for multi‑GPU CrossFireX setups, fast NVMe boot drives and extensive storage arrays.
Connectivity covers modern needs with USB 3.2 Gen2 Type‑A and Type‑C ports, additional USB 3.2 Gen1 and USB 2.0 ports, plus a Gigabit Intel® I219‑V LAN with Wake‑on‑LAN. Video outputs include HDMI, DVI‑D and VGA for flexible display choices up to 4096 x 2160.
Onboard audio supports 7.1 channels and the UEFI AMI BIOS (128 Mbit) provides intuitive configuration and stable operation. The board includes essential power connectors (24‑pin ATX and an EATX power connector), CPU fan header and SATA cables for quick setup.
This motherboard is ideal for a range of use cases: building a mid‑to‑high end gaming rig, a productivity workstation with multiple NVMe drives, or an upgrade platform for users seeking better connectivity and memory performance under Windows 10.
Certified to FCC and CE standards and accompanied by a quick installation guide, the ASRock Z390 Pro4 offers clear upgrade paths, reliable networking and strong multimedia features in a standard ATX form factor.
- Socket: LGA1151 for Intel Core i3/i5/i7/i9
- Memory: 4× DIMM, up to 64 GB DDR4, XMP support
- Expansion: 2× PCIe x16, 2× M.2, 6× SATA III, CrossFireX
- Connectivity: USB 3.2 Gen2 Type‑A/C, Intel Gigabit LAN
- Audio: 7.1 channels, UEFI AMI BIOS
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1151 (Socket H4)
- Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:2133,2400,2666,2800,2933,3200,3600,3733,3800,3866,4000,4133,4300 MHz
- Maximum internal memory:64 GB
- Unbuffered memory:Yes
Graphics
- Parallel processing technology support:CrossFireX, Quad-GPU CrossFireX
- Graphics card family:Intel
- Maximum resolution:4096 x 2160 pixels
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
- Number of SATA III connectors:6
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- Number of EATX power connectors:1
- CPU fan connector:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- VGA (D-Sub) ports quantity:1
- HDMI ports quantity:1
- DVI-D ports quantity:1
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- LAN controller:Intel® I219-V
- Wake-on-LAN ready:Yes
Features
- Motherboard chipset:Intel Z390
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 10
- Certification:FCC, CE
Expansion slots
- PCI Express x1 (Gen 3.x) slots:3
- PCI Express x16 (Gen 3.x) slots:2
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:6.0
Processor special features
- Intel® Clear Video HD Technology (Intel® CVT HD):Yes
- Intel® Turbo Boost Technology:2.0
- Intel Extreme Memory Profile (XMP):Yes
- Intel® Quick Sync Video Technology:Yes
- Intel® Insider™:Yes
- Intel® InTru™ 3D Technology:Yes
Weight & dimensions
- Width:305 mm
- Depth:224 mm
Packaging content
- Cables included:SATA
Other features
- Quick installation guide:Yes
