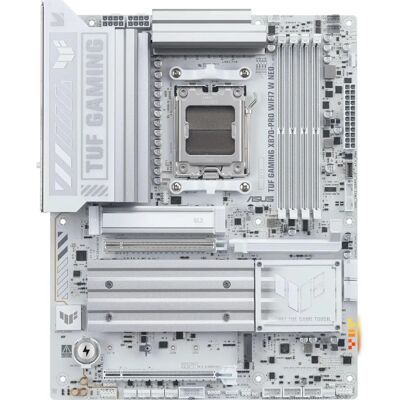

ASUS TUF GAMING X870-PRO WIFI7 W NEO - Motherboard - Supports AMD Ryzen 9000 Series

ASUS TUF GAMING X870-PRO WIFI7 W NEO is a white ATX motherboard designed for AMD's Socket AM5 processors and ready to support the latest Ryzen 9000 Series.

This motherboard is built on the AMD X870 chipset and delivers broad CPU compatibility, working with AMD Ryzen 9000, 8000 and 7000 Series processors. It supports DDR5 memory in four DIMM slots with dual-channel operation and ECC & Non-ECC compatibility for up to 256 GB of RAM and frequencies up to 9600 MHz.

Storage and expansion are plentiful thanks to four M.2 slots (first accepts 2280) and six total storage device connections including two SATA III ports. Hardware RAID 0/1/5/10 is available for advanced redundancy and performance configurations, and there is a PCIe x16 (Gen4) slot for high-performance graphics cards.

Connectivity focuses on tomorrow’s standards with integrated Wi‑Fi 7 (802.11be) provided by a Realtek RTL8922AE WLAN controller, Bluetooth 5.4, two USB4 Gen3x2 ports, multiple USB 3.2 and USB2 ports, a single 5 Gigabit Ethernet RJ‑45 port, and one HDMI output. Onboard Realtek ALC1220P audio delivers 7.1‑channel sound for immersive audio experiences.

Thermal and power design elements include the standard 24‑pin ATX and 8‑pin EPS connectors, one CPU fan header, four chassis fan headers, one water pump connector, and a number of monitoring connectors such as chassis intrusion and COM. A clear CMOS button and a 512 Mbit UEFI AMI BIOS make setup and troubleshooting straightforward.

The TUF GAMING X870‑PRO WIFI7 W NEO fits a standard ATX case (305 x 244 x 50 mm) and weighs approximately 1.56 kg, packaged at 353 x 273 x 68 mm. It ships in a robust box and is optimized for Windows 11.

Use cases for this board include high‑end gaming builds that want Wi‑Fi 7 and multi‑M.2 storage, content creation rigs that need large DDR5 capacity and RAID arrays for fast, redundant storage, and workstation setups that benefit from ECC support and solid onboard networking.

Key selling points: cutting‑edge Wi‑Fi 7, support for AMD Ryzen 9000 Series, four M.2 slots with RAID support, up to 256 GB DDR5 at very high clock speeds, and a durable TUF design in a striking white finish.

• Socket AM5 for AMD Ryzen 9000/8000/7000
• DDR5, 4x DIMM, up to 256 GB, 9600 MHz
• Wi‑Fi 7, Bluetooth 5.4, 5 Gb Ethernet
• 4x M.2, RAID 0/1/5/10
• Realtek ALC1220P 7.1 audio
