ASRock - A620AM Pro RS - AM5 - Micro ATX - Motherboard
Our shoppers love
£93.99 from Backtotheoffice.co.uk
- Dr.MOS VRM power design •
- 6-layer PCB for stable power delivery •
- 2x M.2 PCIe NVMe slots •
- 4x DDR5 DIMMs, dual channel •
- More features
Offers updated on: 13/11/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description

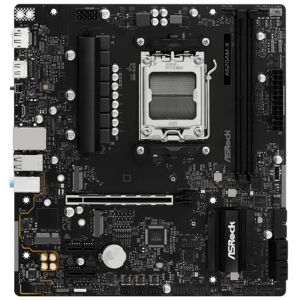

ASRock A620am Pro RS - Motherboard - AMD AM5 - DDR5 - M.2 arrives as a compact micro ATX board built for AMD AM5 processors and modern DDR5 memory.
This ASRock A620am Pro RS supports a wide range of AMD processors including Ryzen 7000, 8000 and 9000 series as well as Ryzen PRO and multiple Threadripper families, all via the Socket AM5. Its AMD A620A chipset delivers a reliable platform for mainstream and prosumer builds.
Memory capabilities are strong for the form factor, with four DIMM slots supporting DDR5-SDRAM in dual-channel mode and up to 256 GB of ECC and non-ECC memory. This makes the board suitable for demanding multitasking, content creation and light workstation tasks.
Storage flexibility comes from one M.2 slot and two SATA III connectors, plus RAID support (0, 1, 10) for users who want redundancy or performance arrays. The board includes SATA cables and mounting screws for quick installation.
Connectivity covers modern needs with 2.5 Gigabit Ethernet driven by the Dragon RTL8125AG controller, one HDMI and one DisplayPort 1.4 output, multiple USB ports (four USB 2.0, three USB 3.2 Gen 1 Type-A and one Type-C), and front-panel audio with 7.1-channel Realtek ALC897 audio.
The ASRock A620am Pro RS offers essential build conveniences, including a 24-pin ATX power connector, an 8-pin EPS connector, a CPU fan header, TPM and RGB LED header support, and a UEFI AMI BIOS with 256 Mbit memory for firmware features and updates.
Typical use cases include compact gaming builds using a discrete GPU in the PCIe x16 Gen 4 slot, home office or media PCs leveraging the 2.5 GbE network, and entry-level workstations requiring ECC memory and RAID storage options. With Windows 10 x64 and Windows 11 x64 support, integration into modern systems is straightforward.
Key selling points: micro ATX form factor for space-efficient builds, broad AM5 CPU compatibility, DDR5 support up to 256 GB, M.2 plus SATA and RAID support, 2.5 GbE networking and versatile USB connectivity.
- Socket AM5 for Ryzen 7000–9000 and compatible Threadripper models
- DDR5, 4x DIMM, up to 256 GB, ECC & Non-ECC
- M.2 + 2x SATA III with RAID 0/1/10
- 2.5 GbE LAN (Dragon RTL8125AG) and DisplayPort 1.4
- 3x USB 3.2 Gen1 Type-A + 1x Type-C
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen PRO 7000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 5000 WX-Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Maximum internal memory:256 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of storage drives supported:4
- RAID support:Yes
- RAID levels:0, 1, 10
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2
- Number of SATA III connectors:2
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of CPU fan connectors:1
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):1
- TPM connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Line-in:Yes
- Microphone in:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet
- LAN controller:Dragon RTL8125AG
- Wi-Fi:No
- Top Wi-Fi standard:Not available
Features
- Motherboard chipset:AMD A620A
- Audio chip:Realtek ALC897
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:AMD
- Windows operating systems supported:Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots:1
- PCI Express x16 (Gen 4.x) slots:1
- Number of M.2 (M) slots:2
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
Weight & dimensions
- Width:244 mm
- Depth:244 mm
Packaging content
- Cables included:SATA
- Screws included:Yes
