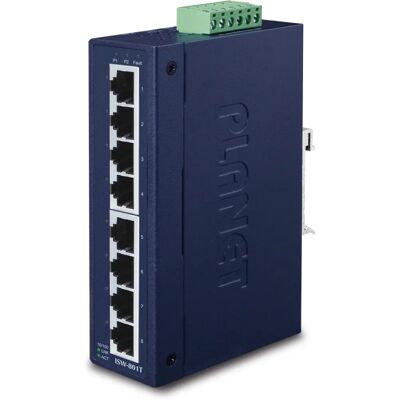

Planet ISW-801T Industrial 8-Port Ethernet Switch
- Unmanaged L2 Fast Ethernet switch •
- 8 ports 10/100 Mbps •
- DIN rail mounting capability •
- Industrial-grade metal enclosure •
- More features
Offers updated on: 06/08/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
Introducing the Planet ISW-801T Industrial 8-Port Ethernet Switch, a remarkable choice for your networking needs that stands out for its robust performance and durability!
Designed to deliver high-speed connectivity, this unmanaged L2 switch features eight Fast Ethernet (10/100) RJ-45 ports, seamlessly connecting your devices and boosting your network's efficiency.
Here are some of the standout features:
- Switch Type: Unmanaged, easy to set up and ideal for small to medium environments.
- Switch Layer: Layer 2, ensuring effective data packet switching.
- Switching Capacity: 1.6 Gbit/s, providing the necessary throughput for demanding applications.
- MAC Address Table: Supports up to 1024 entries, allowing for extensive device connections.
- Operating Temperature: Ranges from -40 to 75 °C, making it suitable for harsh environments.
With a typical power consumption of just 2.1 W and IP30 certification, this metal-housed switch shines in both reliability and energy efficiency. Its compact dimensions (135 mm width, 87 mm depth, and 32 mm height) allow for versatile installation options, whether wall mountable or DIN rail mounted.
Perfect for industrial, commercial, or even home office applications, the Planet ISW-801T is designed to meet your connectivity demands without breaking a sweat.
Furthermore, support for flow control and auto-negotiation ensures seamless performance and prevents packet loss, enhancing network reliability.
To sum it all up, if you're looking for a robust, efficient, and durable Ethernet switch that gets the job done, the Planet ISW-801T is your go-to option!
Features
Management features
- Switch type:Unmanaged
- Switch layer:L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:8
- Basic switching RJ-45 Ethernet ports type:Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity:8
Network
- Networking standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- 10G support:No
- Copper ethernet cabling technology:10BASE-T, 100BASE-TX
- Full duplex:Yes
- Flow control support:Yes
- Auto-negotiation:Yes
- MAC address auto-learning supported:Yes
- MAC address auto-aging supported:Yes
Data transmission
- Switching capacity:1.6 Gbit/s
- Throughput:1.19 Mpps
- MAC address table:1024 entries
- Store-and-forward:Yes
Design
- Rack mounting:No
- Stackable:No
- Product colour:Blue
- Housing material:Metal
- LED indicators:Yes
- International Protection (IP) code:IP30
- Wall mountable:Yes
- DIN rail mounting:Yes
Power
- Power supply included:No
- Redundant power supply (RPS) support:Yes
- Power consumption (typical):2.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):No
Operational conditions
- Operating temperature (T-T):-40 - 75 °C
- Storage temperature (T-T):-40 - 75 °C
- Operating relative humidity (H-H):5 - 95%
- Storage relative humidity (H-H):5 - 95%
- Heat dissipation:7.1 BTU/h
Weight & dimensions
- Width:135 mm
- Depth:87 mm
- Height:32 mm
- Weight:428 g
Certificates
- Certification:FCC, CE
Logistics data
- Harmonized System (HS) code:85176990
