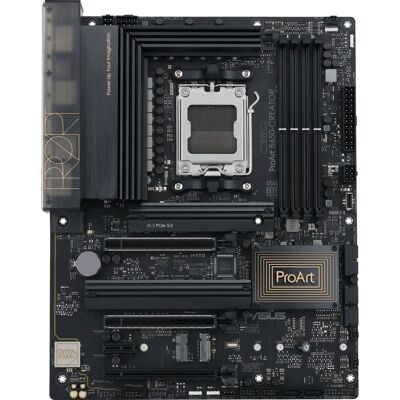

ASUS ProArt B650-Creator - AMD - ATX Motherboard - Black
- Supports AMD Ryzen 7000 Series processors •
- More features
Offers updated on: 30/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
ASUS ProArt B650-Creator is a professional-grade ATX motherboard designed for AMD systems, optimized for Socket AM5 processors and compatible with the AMD Ryzen 7000 Series.
This black ASUS ProArt B650-Creator supports DDR5-SDRAM across four DIMM slots in a dual-channel configuration, offering up to 128 GB of unbuffered memory and a maximum supported memory speed of 6400 MHz. It also supports both ECC and non-ECC modules for enhanced reliability in creative workloads.
The board offers extensive storage flexibility with three M.2 slots, four SATA III connectors, and support for both HDDs and SSDs. Hardware RAID is supported for levels 0, 1 and 10, making it easy to configure fast or redundant storage arrays for media projects and large file sets.
Expansion and connectivity are robust with three PCIe x16 (Gen4) slots and one PCIe x4 slot, plus a Thunderbolt header for high-speed peripheral integration. External ports include two USB 2.0, three USB 3.2 Gen 2 Type-A and two USB 3.2 Gen 2 Type-C ports, along with dual Ethernet (2.5 Gb and 1 Gb) for fast wired networking.
Display and audio features include one HDMI 2.1 and one DisplayPort 1.4 output, plus a 7.1-channel audio subsystem with line‑in, microphone, S/PDIF out and a headphone output. The board ships with a UEFI AMI BIOS (256 Mbit) and convenient features such as a Back-to-BIOS button and onboard Thunderbolt header for professional workflows.
Power and cooling are well catered for with a standard 24-pin ATX connector, 8-pin EPS CPU power, a 12V power connector, CPU fan header and four chassis fan connectors. The ATX form factor (305 x 244 mm) provides room for high-performance cooling and expansion in full-sized builds.
Use cases for the ASUS ProArt B650-Creator include content creation workstations, video editing rigs, software development stations, and compact servers that benefit from fast storage, dual LAN, and ECC memory support. It is optimized for Windows 10 and Windows 11 x64 environments.
- Socket AM5 for AMD Ryzen 7000 Series
- DDR5 up to 6400 MHz, 4 DIMMs, 128 GB
- 3x M.2, RAID 0/1/10 support
- Dual LAN (2.5 Gb + 1 Gb) and Thunderbolt header
- 3x PCIe x16 (Gen4) slots and robust audio (7.1)
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM5
- Compatible processor series:AMD Ryzen 7000 Series
- Supported processor sockets:Socket AM5
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Supported memory clock speed (max):6400 MHz
- Maximum internal memory:128 GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- RAID support:Yes
- RAID levels:0, 1, 10
Graphics
- Parallel processing technology support:Not supported
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Front panel audio connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- Number of chassis fan connectors:4
- EPS power connector (8-pin):Yes
- Number of COM connectors:1
- Thunderbolt headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:2
- Ethernet LAN (RJ-45) ports:2
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Headphone outputs:1
- Line-in:Yes
- Microphone in:Yes
- S/PDIF out port:Yes
Network
- Ethernet LAN:Yes
- Ethernet interface type:2.5 Gigabit Ethernet, Gigabit Ethernet
- Wi-Fi:No
Features
- Motherboard chipset:AMD B650
- Audio output channels:7.1 channels
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:AMD
- Power source type:ATX
- Windows operating systems supported:Windows 10, Windows 11 x64
Expansion slots
- PCI Express x4 (Gen 1.x) slots:1
- PCI Express x16 (Gen 4.x) slots:3
- Number of M.2 (M) slots:3
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:256 Mbit
Weight & dimensions
- Width:305 mm
- Depth:244 mm
Packaging content
- Cables included:SATA
- User guide:Yes
Other features
- Back-to-BIOS button:Yes
- Number of M.2 (E) slots:1
