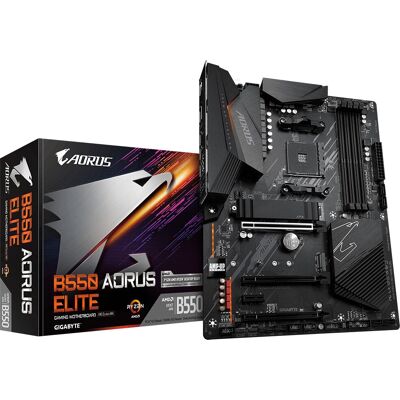

GIGABYTE B550 AORUS ELITE - Motherboard for AMD Ryzen CPU

GIGABYTE B550 AORUS ELITE is a high-performance ATX motherboard designed for AMD Ryzen CPUs and built around the AMD B550 chipset.

This motherboard supports AMD Socket AM4 processors and is optimized for the AMD Ryzen 3000 Series, offering reliable power delivery and compatibility for gaming and productivity builds.

Memory support includes four DIMM slots for DDR4-SDRAM with ECC and non-ECC compatibility, supporting speeds of 2133, 2400, 2667, 2933 and 3200 MHz up to a maximum of 128 GB, making it suitable for multitasking and memory-intensive applications.

Storage options are versatile, with support for HDD and SSD drives and interfaces including M.2, PCI Express (including PCIe 3.0) and SATA connectors. The board offers RAID 0, 1 and 10 for performance or redundancy configurations.

Graphics and display connectivity are well covered with onboard AMD graphics support, one HDMI port and one DisplayPort, enabling resolutions up to 5120 x 2880 with HDCP. Expansion includes two PCIe x16 slots (one PCIe 4.0) and a PCIe x1 (Gen3) slot for additional cards.

Connectivity and audio features include 2 USB 2.0 ports, four USB 3.2 Gen1 Type-A ports and two USB 3.2 Gen2 Type-A ports, one Gigabit/2.5Gb/100Gb Ethernet interface via RJ-45, S/PDIF optical out and Realtek ALC1200 audio delivering 7.1 channels. A TPM connector, 24-pin ATX power connector and UEFI AMI BIOS (256 Mbit) are present for security and system control.

The ATX form factor (244 x 305 mm) makes the GIGABYTE B550 AORUS ELITE a solid choice for gaming rigs, content creation PCs and workstation builds that require expansion and high-speed storage. It supports Windows 10 x64 and provides clear CMOS functionality for easy troubleshooting.

• Socket AM4 for AMD Ryzen 3000 Series
• DDR4 up to 128 GB with ECC support
• M.2, PCIe 4.0 slot, RAID 0/1/10
• 2.5 GbE networking, HDMI & DisplayPort
• Realtek ALC1200 7.1 audio and UEFI AMI BIOS
