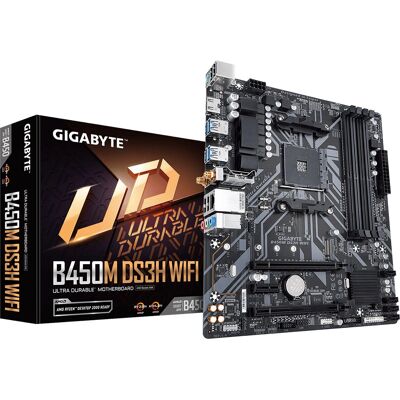

GIGABYTE B450M DS3H WIFI Motherboard - AMD B450 Socket AM4 Micro ATX
- Micro ATX form factor •
- AMD B450 chipset •
- Supports AMD Ryzen processors •
- WiFi connectivity •
- More features
Offers updated on: 30/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the GIGABYTE B450M DS3H WIFI Motherboard, designed to elevate your computing experience. Released with cutting-edge features, this motherboard is optimized for AMD B450 Socket AM4, ensuring compatibility with the latest AMD Ryzen 3000 and 2000 Series processors.
This micro ATX motherboard supports a maximum internal memory of 128 GB using DDR4-SDRAM, with up to 4 memory slots available for dual-channel configuration. Its ability to support various memory clock speeds ranging from 2133 MHz to an impressive 3600 MHz allows for efficient multitasking and performance enhancement.
Key features of the GIGABYTE B450M DS3H include:
- Memory Support: 4 DIMM slots for versatile memory configurations.
- Storage Options: Supports up to 5 storage drives (HDD & SSD) with M.2 and SATA III interfaces, perfect for those needing speed and reliability.
- Advanced Connectivity: Equipped with USB 3.2 Gen 1 connectors and Ethernet LAN for seamless data transfer.
- Audio: Experience high-fidelity sound through a 7.1 channel Realtek ALC887 audio chip.
The GIGABYTE B450M also excels in connectivity with built-in Wi-Fi 5 (802.11ac) and Bluetooth 4.2 capabilities, ensuring you remain connected without the clutter of cables. Perfect for gaming, multimedia, or regular computing tasks, it handles everything with grace.
Its BIOS is a UEFI AMI type, designed for user-friendly settings and straightforward updates, giving you control over your system's performance. Plus, with a warranty period of 3 years, you can feel confident in your purchase.
Use this motherboard in a compact gaming build or a powerful workstation, and enjoy the flexibility it offers. Upgrade your computing setup with the GIGABYTE B450M DS3H and experience performance that meets and exceeds expectations.
Features
Processor
- Processor manufacturer:AMD
- Processor socket:Socket AM4
- Compatible processor series:AMD Ryzen 3000 Series, AMD Ryzen 2000 Series
- Maximum number of SMP processors:1
- Supported processor sockets:Socket AM4
- Maximum internal memory supported by processor:128 GB
Memory
- Supported memory types:DDR4-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:ECC & Non-ECC
- Supported memory clock speeds:2133,2400,2667,2933,3200,3466,3600 MHz
- Supported memory clock speed (max):3600 MHz
- Maximum internal memory:128 GB
- Supported memory module capacities:4GB, 8GB, 16GB, 32GB
- Unbuffered memory:Yes
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:4
- Number of storage drives supported:5
- RAID support:Yes
- RAID levels:0, 1, 10
Graphics
- Maximum graphics card memory:16000 MB
- Parallel processing technology support:Not supported
- On-board graphics card:No
- Maximum resolution:4096 x 2160 pixels
- HDCP:Yes
- DirectX version:12.0
- Discrete graphics support:Yes
Internal I/O
- USB 2.0 connectors:2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:1
- Number of SATA III connectors:4
- Total number of SATA connectors:4
- S/PDIF out connector:Yes
- Front panel audio connector:Yes
- Front panel connector:Yes
- ATX Power connector (24-pin):Yes
- CPU fan connector:Yes
- TPM connector:Yes
- Serial port headers:1
- 12V power connector:Yes
- RGB LED pin header:Yes
Rear panel I/O ports
- USB 2.0 ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:4
- Ethernet LAN (RJ-45) ports:1
- PS/2 ports quantity:1
- HDMI ports quantity:1
- HDMI version:2.0
- DVI-D ports quantity:1
- USB connector type:USB Type-A
Network
- Ethernet LAN:Yes
- Ethernet interface type:Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 5 (802.11ac)
- Wi-Fi standards:802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN controller model:Realtek RTL8821CE
- Bluetooth:Yes
- Bluetooth version:4.2
Features
- Motherboard chipset:AMD B450
- Audio chip:Realtek ALC887
- Audio output channels:7.1 channels
- Product colour:Brown
- PC health monitoring:Fan, Temperature, Voltage
- Component for:PC
- Motherboard form factor:micro ATX
- Motherboard chipset family:AMD
- Power source type:ATX
- Supported processor sockets (cooler):Socket AM4
- Windows operating systems supported:Windows 10 x64, Windows 7 x64
Expansion slots
- PCI Express x1 slots:1
- PCI Express x16 slots:2
- Number of M.2 (M) slots:1
BIOS
- BIOS type:UEFI AMI
- BIOS memory size:128 Mbit
- ACPI version:5.0
- Clear CMOS jumper:Yes
- Desktop Management Interface (DMI) version:2.7
- System Management BIOS (SMBIOS) version:2.7
Logistics data
- Country of origin:China
- Products per shipping (inner) case:1 pc(s)
Battery
- Battery weight:3 g
- Lithium weight per battery:0.07 g
- Number of battery cells:1
- Battery technology:Lithium-Manganese Dioxide (LiMnO2)
- Battery type:CR2032
Packaging data
- Package width:265 mm
- Package depth:265 mm
- Package height:54 mm
- Package weight:950 g
Weight & dimensions
- Width:244 mm
- Depth:215 mm
- Height:35 mm
Packaging content
- Batteries included:Yes
- Bundled software:Norton Internet Security, cFosSpeed
Technical details
- Warranty period:3 year(s)
