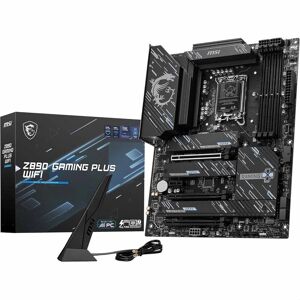

MSI Z890 Gaming Plus WiFi Motherboard - Motherboard with DDR5 & Wi-Fi 7
- Supports Intel Core Ultra Series 2 •
- Dual-channel DDR5 memory up to 256GB •
- Wi-Fi 7 with 320 MHz channel •
- 5G LAN network with 5.8 Gbps speed •
- More features
Offers updated on: 30/07/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
International prices
Description
MSI Z890 Gaming Plus WiFi is a high-performance ATX motherboard designed for Intel LGA1851 processors and built to support the latest Intel Core Ultra (Series 2) CPUs.
This motherboard features the Intel Z890 chipset and delivers modern connectivity including onboard Wi‑Fi 7 (Killer Wi‑Fi 7 BE1750) and 5 Gigabit Ethernet, making it ideal for low-latency online gaming and heavy networked workloads.
Memory support is robust with four DIMM slots for DDR5‑SDRAM in dual‑channel configuration, supporting up to 256 GB total and speeds up to an impressive 9200 MHz, enabling extreme multitasking and memory‑intensive applications.
Storage options are flexible: four M.2 slots plus four SATA III connectors allow multiple NVMe SSDs and HDDs, with RAID support (0, 1, 5, 10) for performance or redundancy. The board supports up to eight HDDs via available interfaces and provides modern expansion with PCIe Gen5 x16 and additional Gen4 x4/x1 slots.
Rear I/O is versatile, offering multiple USB ports including USB 3.2 Gen2 Type‑A and Type‑C, HDMI 2.1 and DisplayPort 1.4 for display output, a Thunderbolt port, and high‑quality 7.1 channel audio powered by the Realtek ALC897 codec for immersive sound.
The board’s power delivery includes a 24‑pin ATX connector and an 8‑pin EPS connector to ensure stable power to demanding CPUs, and the black ATX form factor (243.8 x 304.8 mm) fits standard gaming cases.
Use cases: pair the MSI Z890 Gaming Plus WiFi with an Intel Core Ultra Series 2 CPU for a high‑end gaming rig, a content‑creation workstation requiring fast NVMe storage and massive DDR5 memory, or a home streaming and LAN setup that benefits from Wi‑Fi 7 and 5GbE networking.
Key selling points include support for DDR5 up to 9200 MHz, Wi‑Fi 7 and Killer networking, four M.2 slots with RAID support, PCIe Gen5 graphics compatibility, and extensive USB and display connectivity. This makes the MSI Z890 Gaming Plus WiFi a future‑proof choice for gamers and power users.
- Socket: LGA1851 for Intel Core Ultra (Series 2)
- Memory: 4× DIMM DDR5, up to 256 GB, up to 9200 MHz
- Networking: Killer Wi‑Fi 7 BE1750 + 5GbE
- Storage: 4× M.2, 4× SATA III, RAID 0/1/5/10
- Expansion: PCIe Gen5 x16 + Gen4 slots
Features
Processor
- Processor manufacturer:Intel
- Processor socket:LGA 1851 (Socket V1)
- Compatible processor series:Intel Core Ultra (Series 2)
- Supported processor sockets:Intel LGA1851
- Maximum internal memory supported by processor:256 GB
Memory
- Supported memory types:DDR5-SDRAM
- Number of memory slots:4
- Memory slots type:DIMM
- Memory channels:Dual-channel
- ECC сompatibility:Non-ECC
- Supported memory clock speeds:6400,9200 MHz
- Supported memory clock speed (max):9200 MHz
- Maximum internal memory:256 GB
Storage controllers
- Supported storage drive types:HDD & SSD
- Supported storage drive interfaces:M.2, SATA III
- Number of HDDs supported:8
- Number of storage drives supported:4
- RAID support:Yes
- RAID levels:0, 1, 5, 10
Graphics
- On-board graphics card:No
Internal I/O
- USB 2.0 connectors:4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors:4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors:1
- Number of SATA III connectors:4
- Total number of SATA connectors:4
- ATX Power connector (24-pin):Yes
- EPS power connector (8-pin):Yes
- Number of EPS power connectors (8-pin):1
Rear panel I/O ports
- USB 2.0 ports quantity:4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
- Ethernet LAN (RJ-45) ports:1
- HDMI ports quantity:1
- HDMI version:2.1
- DisplayPorts quantity:1
- DisplayPort version:1.4
- Thunderbolt ports quantity:1
Network
- Ethernet LAN:Yes
- Ethernet interface type:5 Gigabit Ethernet
- Wi-Fi:Yes
- Top Wi-Fi standard:Wi-Fi 7 (802.11be)
- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model:Killer Wi-Fi 7 BE1750
- Bluetooth:Yes
- Bluetooth version:5.4
Features
- Motherboard chipset:Intel Z890
- Audio chip:Realtek ALC897
- Audio output channels:7.1 channels
- Product colour:Black
- Component for:PC
- Motherboard form factor:ATX
- Motherboard chipset family:Intel
- Windows operating systems supported:Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots:1
- PCI Express x4 (Gen 4.x) slots:2
- PCI Express x16 (Gen 5.x) slots:1
- Number of M.2 (M) slots:4
Weight & dimensions
- Width:243.8 mm
- Depth:304.8 mm
