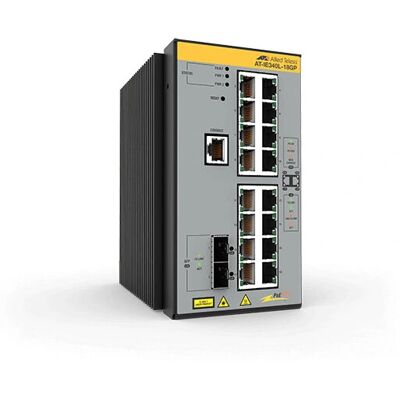

Allied Telesis AT-IE340L-18GP - Managed L3 Switch - 8 PoE+ Ports - 2 SFP - Gray
- Layer 3 Managed Switch •
- PoE+ Support (240 W) •
- Gigabit Ethernet Ports (8 PoE+ + 8 PoE) •
- SFP Ports (2) •
- More features
Offers updated on: 05/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
The Allied Telesis AT-IE340L-18GP is a state-of-the-art managed L3 switch, designed to deliver robust performance and versatility in various networking environments. With its launch, this device has quickly become a staple for those needing reliable and efficient network solutions.
This high-performance switch comes equipped with 8 PoE+ ports and 2 SFP slots, providing a seamless connection for both wired and wireless devices. Its advanced features ensure that your network operates smoothly, making it ideal for both small and large organizations.
- Managed Type: Allows for detailed control and monitoring of network traffic.
- Quality of Service (QoS): Ensures that critical applications receive the necessary bandwidth for optimal performance.
- Web-based Management: Offers an intuitive interface for easier monitoring and configuration.
One of the key highlights of the AT-IE340L-18GP is its impressive switching capacity of up to 36 Gbit/s, combined with a forwarding rate of 26.7 Mpps. This allows for rapid data transfer and minimal latency, even in high-demand situations.
- VLAN Support: Manage up to 4094 VLANs, enabling network segmentation for enhanced security.
- MAC Address Table: Supports up to 16,000 entries, which is perfect for larger networks.
- Secure Communication: Features like ARP inspection and access control lists (ACL) protect your data integrity and enhance security.
Its compact design also makes it wall mountable and DIN rail mountable, allowing for flexible installation in various settings. Plus, it’s built to withstand harsh environments, with an operating temperature range between -40 to 65 °C, making it suitable for challenging industrial applications.
- Power over Ethernet: Each of the 16 PoE+ ports delivers up to 15 W, simplifying wiring and providing power to connected devices without additional outlets.
- Electromagnetic Compatibility: Certified to meet standards such as CE, FCC, and RCM, ensuring it plays nicely with other equipment.
- Energy Efficient: With a maximum power consumption of only 271 W, it’s designed to be eco-friendly while delivering powerful performance.
Whether you’re setting up a new network or upgrading an existing one, the Allied Telesis AT-IE340L-18GP is the perfect choice for delivering reliable, high-performance networking solutions tailored to your needs.
Features
Management features
- Switch type:Managed
- Switch layer:L3
- Quality of Service (QoS) support:Yes
- Web-based management:Yes
- ARP inspection:Yes
- Configuring Location Settings (CLI):Yes
- System event log:Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:16
- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)
- SFP module slots quantity:2
- Console port:RJ-45
- USB 2.0 ports quantity:1
Network
- Networking standards:IEEE 802.1x
- 10G support:No
- Spanning tree protocol:Yes
- VLAN support:Yes
- Virtual LAN features:Private VLAN
- Number of VLANs:4094
Data transmission
- Switching capacity:36 Gbit/s
- Forwarding rate:26.7 Mpps
- MAC address table:16000 entries
- Latency (10-100 Mbps):7.8 µs
- Latency (1 Gbps):3.4 µs
- Number of queues:8
- Jumbo frames support:Yes
- Jumbo frames:9000
- Packet buffer memory:1.5 MB
Security
- DHCP features:DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
- Access Control List (ACL):Yes
- IGMP snooping:Yes
- MAC address filtering:Yes
- BPDU filtering/protection:Yes
- Authentication:Guest VLAN
- Password protection:Yes
Multicast features
- Multicast support:Yes
Protocols
- Routing protocols:BGP, OSPF, RIP
Design
- Rack mounting:No
- Stackable:No
- Product colour:Grey
- Housing material:Aluminium, Metal
- LED indicators:Yes
- International Protection (IP) code:IP30
- Wall mountable:Yes
- DIN rail mounting:Yes
- Electromagnetic compatibility:AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A
Performance
- Memory type:DDR-SDRAM
- Internal memory:512 MB
- Flash memory:128 MB
- Export Control Classification Number (ECCN):5A992C
Power
- Power supply included:No
- Power consumption (max):271 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):Yes
- Power over Ethernet plus (PoE+) ports quantity:16
- Power over Ethernet (PoE) power per port:15 W
- Total Power over Ethernet (PoE) budget:240 W
Operational conditions
- Operating temperature (T-T):-40 - 65 °C
- Storage temperature (T-T):-40 - 85 °C
- Operating relative humidity (H-H):5 - 95%
- Storage relative humidity (H-H):5 - 90%
- Operating altitude:0 - 3000 m
- Heat dissipation:105.8 BTU/h
Weight & dimensions
- Width:91 mm
- Depth:139 mm
- Height:153 mm
- Weight:2.34 kg
Certificates
- Certification:EN 50022, EN 60715 CE, FCC, ICES, RCM, TEC, UL, VCCI RoHS, China-RoHS, WEEE
Logistics data
- Harmonized System (HS) code:8517.62.0050
