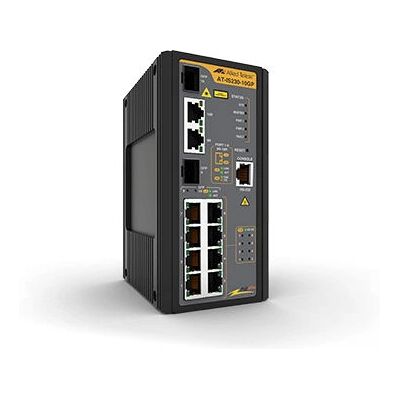

Allied Telesis AT-IS230-10GP-80 Managed Layer 2 Gigabit Ethernet Switch - 8 RJ-45, PoE
- Managed Layer 2 switch •
- Gigabit Ethernet ports (10/100/1000) •
- PoE support •
- 8 RJ-45 ports •
- More features
Offers updated on: 17/09/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Allied Telesis AT-IS230-10GP-80 Managed Layer 2 Gigabit Ethernet Switch, a robust network solution designed to enhance your connectivity experience.
With its managed switch capabilities and Layer 2 functionalities, this switch offers advanced features that are essential for any modern network environment.
Equipped with 8 RJ-45 Gigabit Ethernet ports, the switch provides fast and reliable connections for a variety of devices.
Whether you’re connecting workstations, IP cameras, or wireless access points, you can count on the high speed of 10/100/1000 Mbps on each port.
Experience enhanced performance with Quality of Service (QoS) support, ensuring that your applications receive the bandwidth they need.
The AT-IS230-10GP-80 also boasts extensive VLAN support, allowing for the segmentation of network traffic into up to 4094 VLANs, enhancing your network's efficiency.
This switch is ideal for businesses that require a secure and adaptable network.
Security is paramount; hence, the switch incorporates advanced security algorithms such as SSH, SSL/TLS, and port-based authentication.
With features like Port Mirroring, Link Aggregation, and IGMP Snooping, the switch delivers an optimal balance of performance and reliability.
Application scenarios vary from small offices to large corporations, ensuring that the Allied Telesis AT-IS230-10GP-80 fits seamlessly within any infrastructure.
- 10G support: No
- Flow control support: Yes
- Power over Ethernet (PoE): Yes, with 8 ports offering up to 30 W each
- Operating temperature: -40 to 75 °C
- Dimensions: 74 mm width, 105 mm depth, 152 mm height
Designed for optimal heat dissipation and low power consumption, it guarantees continuous operation while effectively managing energy efficiency.
The sturdy metal housing, with an International Protection (IP) code of IP30, ensures durability under various environmental conditions.
Installation is versatile—it can be wall mounted or DIN rail mounted, making it a great choice for space-constrained settings.
Ultimately, the Allied Telesis AT-IS230-10GP-80 switch delivers high speed, security, and reliability for your networking needs, making it an investment in future-proof technology.
Upgrade your network infrastructure today and enjoy the benefits of superior connectivity!
Features
Management features
- Switch type:Managed
- Switch layer:L2
- Quality of Service (QoS) support:Yes
- MIB support:RFC 1212, RFC 1213, RFC 1239, RFC 2819, RFC 2863, RFC 3418, RFC 4022, RFC 4113
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:8
- Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity:2
- Fiber optic connector:SFP
Network
- Networking standards:IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support:No
- Copper ethernet cabling technology:1000BASE-T
- Port mirroring:Yes
- Full duplex:Yes
- Flow control support:Yes
- Link aggregation:Yes
- Spanning tree protocol:Yes
- VLAN support:Yes
- Virtual LAN features:Multicast VLAN, Stacked VLAN, Tagged VLAN
- Number of VLANs:4094
Optical fiber
- Fiber ethernet cabling technology:100BASE-X, 1000BASE-X
Data transmission
- Switching capacity:20 Gbit/s
- Forwarding rate:14.88 Mpps
- MAC address table:8000 entries
- Number of queues:8
- Jumbo frames support:Yes
- Jumbo frames:9000
- Packet buffer memory:4 MB
Security
- DHCP features:DHCP relay
- IGMP snooping:Yes
- Security algorithms:3DES, 802.1x RADIUS, DES, RSA, SHA-1, SNMP, SNMPv3, SSH, SSH-2, SSL/TLS
- SSH/SSL support:Yes
- Loop protection:Yes
- Authentication:Port-based authentication
Multicast features
- Multicast support:Yes
Protocols
- GARP VLAN Registration Protocol (GVRP):Yes
Design
- Rack mounting:No
- Product colour:Black
- Housing material:Metal
- LED indicators:Yes
- International Protection (IP) code:IP30
- Wall mountable:Yes
- DIN rail mounting:Yes
- Safety:CSA C22.2 No. 61010-2-201, IEC60950-1, UL60950-1, UL61010-2-201
- Electromagnetic compatibility:AS/NZS CISPR 32, A; EN55024; EN55032, A; EN61000-6-2; EN61000-6-4, A; FCC 15B, A; ICES-003, 6, A; VCCI, A
Performance
- Buffer size:512 KB
Power
- DC input voltage:24 - 48 V
- Power consumption (max):139.3 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):Yes
- Power over Ethernet (PoE) ports quantity:8
- Power over Ethernet plus (PoE+) ports quantity:4
- Power over Ethernet (PoE) power per port:30 W
- Total Power over Ethernet (PoE) budget:120 W
Operational conditions
- Operating temperature (T-T):-40 - 75 °C
- Storage temperature (T-T):-40 - 85 °C
- Operating relative humidity (H-H):10 - 95%
- Storage relative humidity (H-H):10 - 95%
- Operating altitude:0 - 3000 m
- Heat dissipation:475.3 BTU/h
Weight & dimensions
- Width:74 mm
- Depth:105 mm
- Height:152 mm
- Weight:1.2 kg
Certificates
- Certification:CE, FCC, RCM, TUV, VCCI, RoHS, WEEE
Logistics data
- Harmonized System (HS) code:85176990
