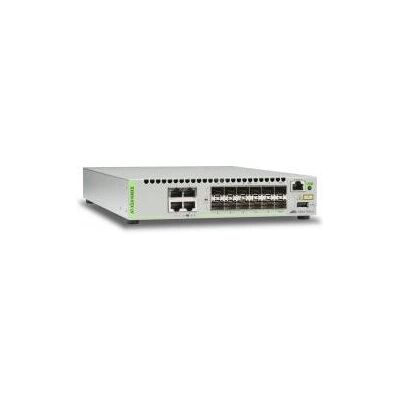

Allied Telesis AT-XS916MXS-30 10G Managed Network Switch - Layer 3
- Managed Layer 3 switch •
- 10G Ethernet ports •
- 4 RJ-45 ports •
- Full duplex •
- More features
Offers updated on: 28/10/2026. Paid and non-exhaustive ads ★ The ratings are generated from multiple sources, including data provided by the merchant and publicly available information.
Description
Introducing the Allied Telesis AT-XS916MXS-30 10G Managed Network Switch, a powerful Layer 3 solution designed to elevate your network performance. This state-of-the-art switch is engineered to cater to both small and large enterprises, providing high-speed connectivity to meet demanding business needs.
With a sleek grey design, the AT-XS916MXS-30 is not just aesthetically pleasing but is also packed with exceptional features that ensure reliability and efficiency:
- Managed Switch Type: Enjoy enhanced control over your network with advanced management options.
- Layer 3 Capabilities: Facilitates efficient routing and inter-VLAN communication.
- Quality of Service (QoS): Prioritize critical traffic seamlessly.
- Web-Based Management: Manage your network effortlessly through an intuitive web interface.
- Traffic Classification: Optimize bandwidth usage by classifying different traffic types.
- ARP Inspection: Enhances network security by preventing malicious activity.
- System Event Log: Keep track of network performance and issues with ease.
- Robust Port Configuration: Includes 4 basic switching RJ-45 Ethernet ports for 10G Ethernet, plus 12 SFP+ module slots.
Whether you're handling high data rates or need enhanced security protocols, this switch is an excellent choice. The maximum switching capacity of 320 Gbit/s ensures that your network can handle substantial workloads without bottlenecks.
For businesses looking to improve their network infrastructure, the AT-XS916MXS-30 comes with:
- IP Routing and Link Aggregation: Effectively manage multiple traffic paths.
- Port Mirroring: Monitor network performance and troubleshoot issues efficiently.
- Spanning Tree Protocol and VLAN support: Enhance your network's manageability and resilience.
- Flow Control: Prevent data loss during heavy traffic moments.
With a MAC address table supporting 16,000 entries and 8 queues, this switch ensures a reliable and robust network environment. The operating temperature range from 0 to 50 °C and storage humidity range from 5 to 95% further highlight its durability under varying conditions.
Designed for efficiency, the AT-XS916MXS-30 consumes a maximum of 53 W and dissipates heat at a rate of 180 BTU/h, ensuring it remains operational without overheating.
At only 2.7 kg and dimensions of 323 mm x 210 mm x 43 mm, it can fit into your existing setup with ease. Experience the future of networking with the Allied Telesis AT-XS916MXS-30, the perfect partner for your business's connectivity needs!
Features
Management features
- Switch type:Managed
- Switch layer:L3
- Quality of Service (QoS) support:Yes
- Web-based management:Yes
- Traffic classification:Yes
- ARP inspection:Yes
- System event log:Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity:4
- Basic switching RJ-45 Ethernet ports type:10G Ethernet (100/1000/10000)
- SFP+ module slots quantity:12
Network
- Networking standards:IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z
- 10G support:Yes
- Port mirroring:Yes
- Full duplex:Yes
- IP routing:Yes
- Flow control support:Yes
- Link aggregation:Yes
- Spanning tree protocol:Yes
- VLAN support:Yes
Data transmission
- Switching capacity:320 Gbit/s
- Throughput:238 Mpps
- MAC address table:16000 entries
- Number of queues:8
- Jumbo frames support:Yes
Security
- DHCP features:DHCP client
- Access Control List (ACL):Yes
- IGMP snooping:Yes
- SSH/SSL support:Yes
- Loop protection:Yes
- BPDU filtering/protection:Yes
- Authentication:MAC-based authentication
Multicast features
- Multicast support:Yes
Protocols
- Management protocols:SNMP
Design
- Rack mounting:No
- Stackable:Yes
- Product colour:Grey
Performance
- Flash memory:96 MB
- Noise level:42 dB
Power
- Number of power supply units:1
- AC input voltage:100 - 240 V
- AC input frequency:47/63 Hz
- Power consumption (max):53 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE):No
Operational conditions
- Operating temperature (T-T):0 - 50 °C
- Storage temperature (T-T):-25 - 70 °C
- Operating relative humidity (H-H):5 - 90%
- Storage relative humidity (H-H):5 - 95%
- Operating altitude:0 - 3000 m
- Heat dissipation:180 BTU/h
Weight & dimensions
- Width:323 mm
- Depth:210 mm
- Height:43 mm
- Weight:2.7 kg
