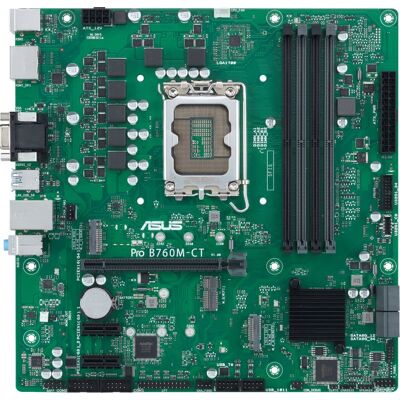

ASUS B760M-CT-CSM Intel B760 micro ATX Motherboard - Support 13th/12th Gen, DDR5, PCIe 4.0

ASUS B760M-CT-CSM Intel B760 micro ATX Motherboard brings modern platform support and DDR5 memory to small-form-factor builds, offering compatibility with 13th and 12th Gen Intel processors.

This micro ATX motherboard features the Intel B760 chipset and an LGA 1700 socket that supports a wide range of Intel® processors including Celeron®, Pentium® Gold and the full Core™ i3/i5/i7/i9 family, making it suitable for entry-level systems up to powerful workstations.

Memory support is a highlight: four DIMM slots accept DDR5-SDRAM in dual-channel configuration, unbuffered and non-ECC, with speeds from 4800 MHz up to 6200 MHz and a maximum capacity of 128 GB for demanding multitasking and content-creation workflows.

Storage and expansion are well covered for a micro ATX board with two M.2 slots, SATA III ports (four connectors), one PCIe 4.0 x16 slot for high-performance graphics, and two PCIe x1 (Gen3) slots for add-in cards. The board also includes a number of legacy-friendly interfaces such as three COM connectors and two PS/2 ports.

Connectivity includes Gigabit Ethernet (RJ-45), two USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports at the rear, and internal headers for additional front-panel USB. Video outputs are flexible when used with a CPU with integrated graphics: HDMI 2.1, two DisplayPort 1.4 connectors and a VGA (D-Sub) port provide multi-monitor options. Audio delivers up to 7.1 channels with front panel audio support.

The ASUS B760M-CT-CSM is built for reliability and manageability in business or enthusiast contexts; features such as a clear CMOS button, three COM ports, chassis intrusion connector and comprehensive fan headers (CPU and two chassis fans) make it ideal for small office servers, specialized workstations, or compact gaming rigs.

Typical use cases include compact gaming PCs with a discrete GPU, office desktops requiring legacy serial ports, home lab servers, and content-creation workstations that benefit from fast DDR5 memory and PCIe 4.0 expansion. The board ships with SATA cables and supports Windows 10 x64 and Windows 11 to ensure broad software compatibility.

• Socket LGA 1700 supporting 12th/13th Gen Intel CPUs
• DDR5, 4× DIMM, up to 128 GB and 6200 MHz
• PCIe 4.0 x16, 2× M.2, 4× SATA III
• HDMI 2.1, 2× DisplayPort 1.4, VGA
• Gigabit Ethernet, 7.1 audio, multiple legacy ports
