Shure PGA98H-TQG Microphone - Instrument, Brass, Black - Microphone

Shure PGA98H-TQG Microphone - Instrument, Brass, Black is a professional stage microphone designed for capturing the rich, dynamic sound of brass instruments and other on-stage sources.

Built with a cardioid polar pattern, the PGA98H-TQG focuses on the instrument in front of it while reducing bleed from surrounding sound, making it ideal for live performance and stage use.

This wired microphone uses a Mini XLR (4-pin) interface and requires phantom power in the range of 11–52 VDC, ensuring compatibility with most professional mixing consoles and wireless transmitters that support bipolar powering.

With a frequency response of 60–20,000 Hz and a sensitivity of -52 dB, the PGA98H-TQG reproduces low-end warmth and clear highs for accurate brass and instrument tones. Its impedance is 850 Ω, and the microphone weighs 210 g, giving a solid, portable feel.

The microphone’s black finish and compact build make it unobtrusive on stage while providing rugged reliability for repeated performances. It is sold as a single unit and is ready for integration into instrument-specific mounts or clips.

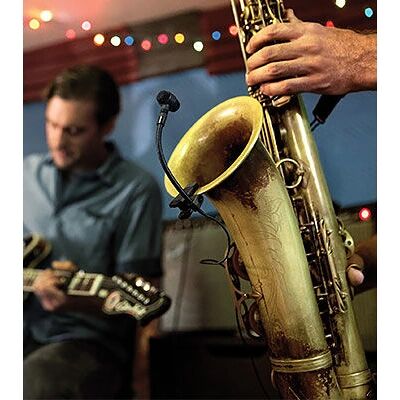

Typical use cases include miking trumpets, trombones, saxophones, and other brass instruments in live concerts, studio recordings, and rehearsals where focused, natural sound capture is required.

Key selling points include the instrument-tailored cardioid pickup, broad 60–20 kHz frequency range, Mini XLR wired connectivity, and robust phantom power compatibility.

• Cardioid polar pattern for focused instrument pickup
• Frequency range: 60–20,000 Hz for full instrument tone
• Mini XLR (4-pin) wired interface; 11–52 VDC power
• Sensitivity: -52 dB; Impedance: 850 Ω; Weight: 210 g
